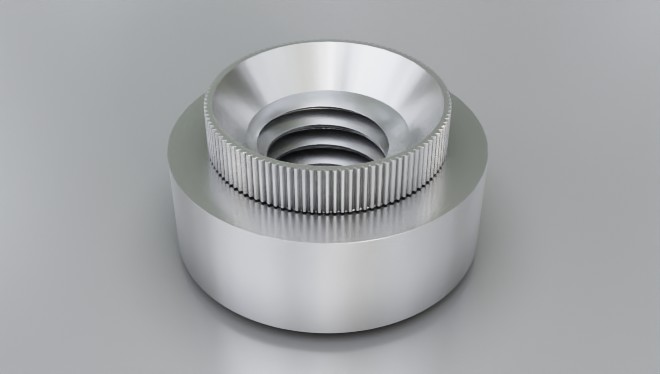

Material Code
Steel/zinc = SZ
Sheet Thickness Code
0910 = 0.9-1.0 mm
1113 = 1.1-1.3 mm
1416 = 1.4-1.6 mm
1719 = 1.7-1.9 mm (only M4)
2022 = 2.0-2.2 mm
2325 = 2.3-2.5 mm
2931 = 2.9-3.1 mm
How to order
Type + Thread + Sheet Thickness Code + Material Code
Example: ERB-M3-1416-SZ

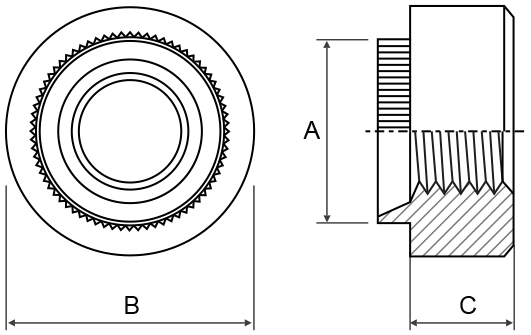

| Thread |
A |
B |
C ±0.13 mm |
Rec. Hole Size 0.10 - 0.0 mm |
Please note! |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 5.85 | 7.92 | 3.17 | 5.90 | Not for 2325 & 2931 Sheet | ||||||||||||||||||
| M4 | 6.90 | 9.52 | 3.81 | 6.95 | |||||||||||||||||||
| M5 | 8.30 | 11.10 | 4.45 | 8.35 | |||||||||||||||||||
| M6 | 9.60 | 12.70 | 5.72 | 9.65 | |||||||||||||||||||
| M8 | 13.05 | 15.87 | 6.35 | 13.10 | Not for 0910 & 1113 Sheet | ||||||||||||||||||
