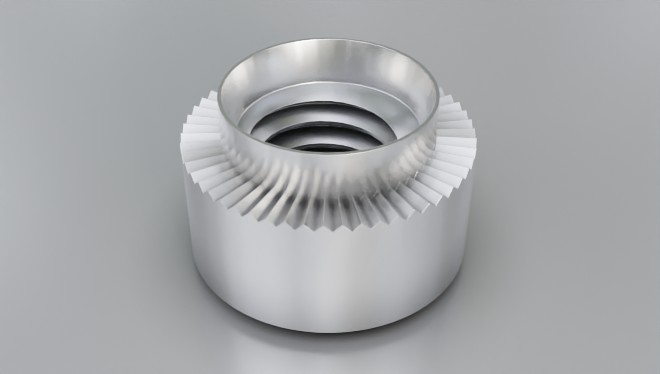

Material Code
Steel/zinc = SZ
303 Stainless steel = SS303
Sheet Thickness Code
06 = 0.6 mm
08 = 0.8 mm
10 = 1.0 mm
12 = 1.2 mm
16 = 1.6 mm
20 = 2.0 mm
25 = 2.5 mm
30 = 3.0 mm
How to order
Type + Thread + Sheet Thickness Code + Material Code
Exampel: SFMRB-M3-10-SZ or SFMRB-M4-12-SS303

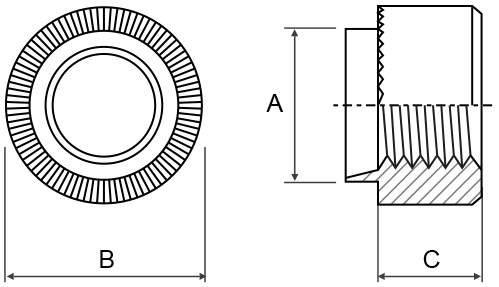

| Thread | A +0.00 -0.13 mm |
B ±0.15 mm |
C ±0.13 mm |
Rec. Hole Size +0.05 -0.00 mm |
Please note! |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 3.50 | 5.00 | 2.30 | 3.50 | Not for 08 & 25 & 30 Sheet | |||||||||||||||||
| M2.5 | 4.19 | 5.50 | 2.80 | 4.19 | Not for 30 Sheet | |||||||||||||||||
| M3 | 4.19 | 5.50 | 2.80 | 4.19 | ||||||||||||||||||
| M4 | 5.41 | 7.00 | 3.20 | 5.41 | Not for 06 Sheet | |||||||||||||||||
| M5 | 6.40 | 8.50 | 3.80 | 6.40 | Not for 06 Sheet | |||||||||||||||||
| M6 | 7.70 | 10.00 | 5.10 | 7.70 | Not for 06 Sheet | |||||||||||||||||
| M8 | 9.70 | 12.00 | 6.50 | 9.70 | Not for 06 & 08 Sheet in steel/zinc Only for 20 Sheet in stainless steel |
|||||||||||||||||
