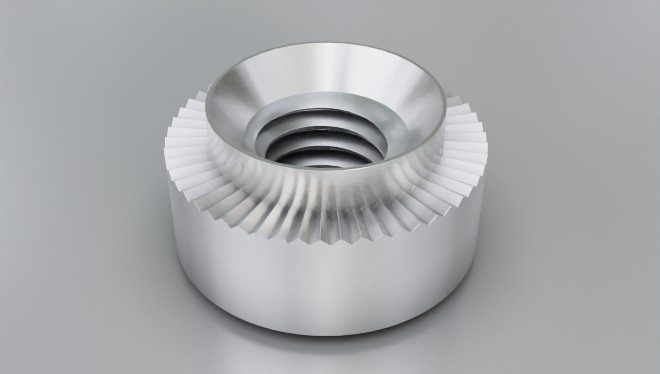

Material Code
Steel/zinc = SZ
303 Stainless steel = SS303
Sheet Thickness Code
0910 = 0.9-1.0 mm
1114 = 1.1-1.4 mm
1517 = 1.5-1.7 mm
1822 = 1.8-2.2 mm
2328 = 2.3-2.8 mm
2934 = 2.9-3.4 mm
How to order
Type + Thread + Sheet Thickness Code + Material Code
Example: SFRB-M3-1114-SZ or SFRB-M3-0910-SS303
| Thread | A +0.00 -0.13 mm |
B ± 0.15 mm |
C ±0.13 mm |
Rec. Hole Size +0.05 -0.00 mm |
Please note! |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 5.54 | 7.92 | 3.17 | 5.54 | ||||||||||||||||||
| M4 | 6.73 | 9.52 | 3.17 | 6.73 | ||||||||||||||||||
| M5 | 7.92 | 11.10 | 3.81 | 7.92 | ||||||||||||||||||
| M6 | 9.52 | 12.70 | 5.08 | 9.52 | ||||||||||||||||||
| M8 | 12.70 | 15.87 | 6.35 | 12.70 | Not for 0910 Sheet | |||||||||||||||||
| M10 | 15.87 | 19.05 | 7.62 | 15.87 | Not for 0910 & 1114 & 2328 Sheet | |||||||||||||||||
