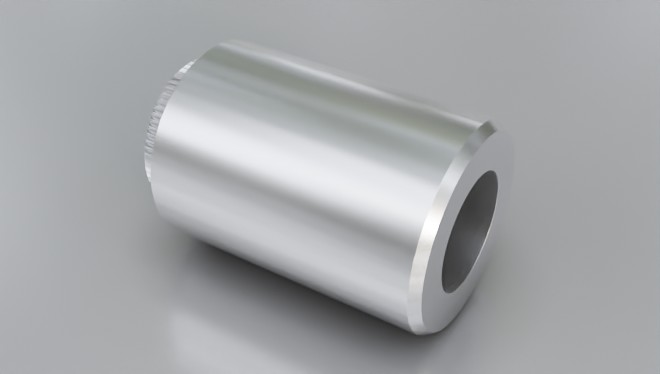

Material Code
Steel/zinc = SF-KFE
Stainless steel = SF-KFSE
How to order
Type + Through Hole + Length
Example: SF-KFE-3.6-3 or SF-KFSE-4.2-6

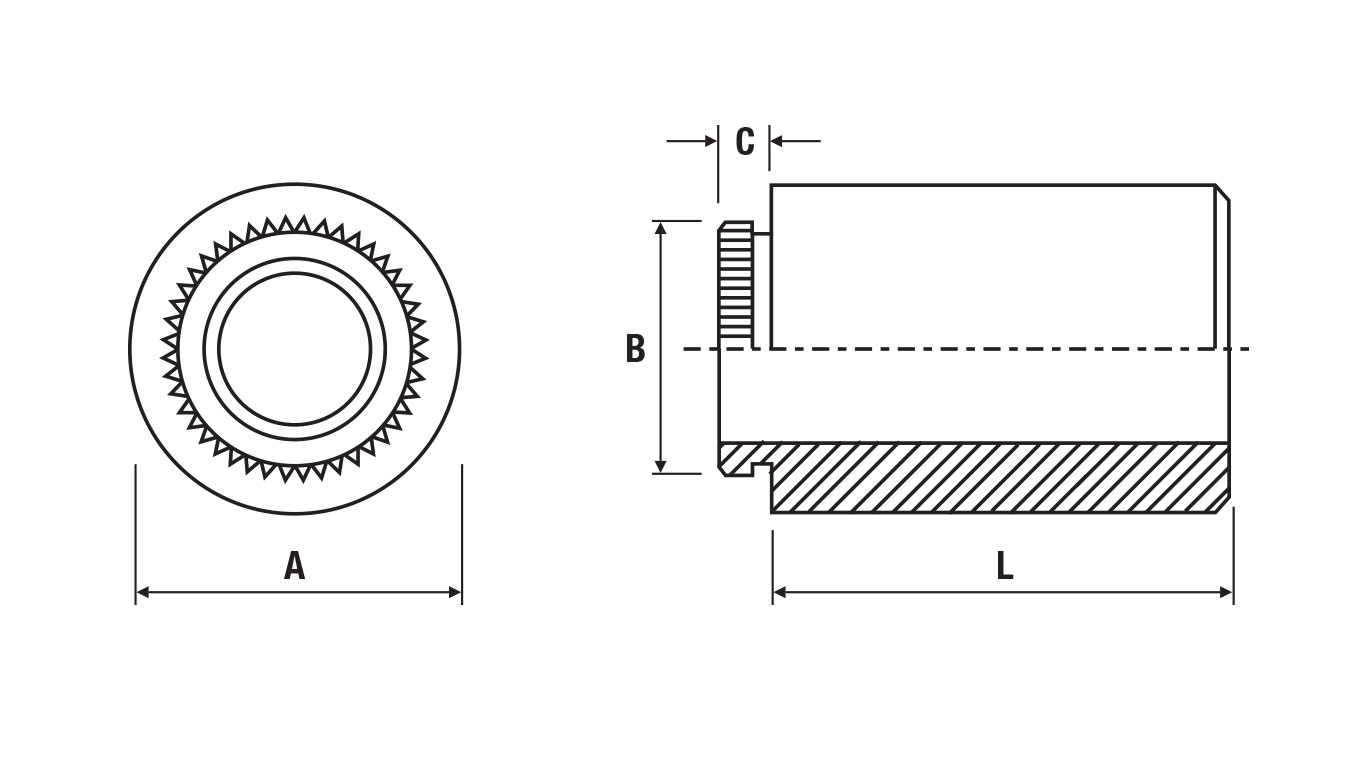

| Through Hole | A ±0.13 mm |
B ±0.08 mm |
C max. mm |
L ±0.13 mm |
Sheet Thickness min. mm |
Rec. Hole Size +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.6 | 7.14 | 5.87 | 1.53 | 3 | 1.53 | 5.41 | 5.5 | SF-KFSE L=4 | ||||||||||||||||||||||
| 4.2 | 8.74 | 6.86 | 1.53 | 1.53 | 6.4 | 7.1 | Quote required | |||||||||||||||||||||||
