Lengths
2mm and 3mm

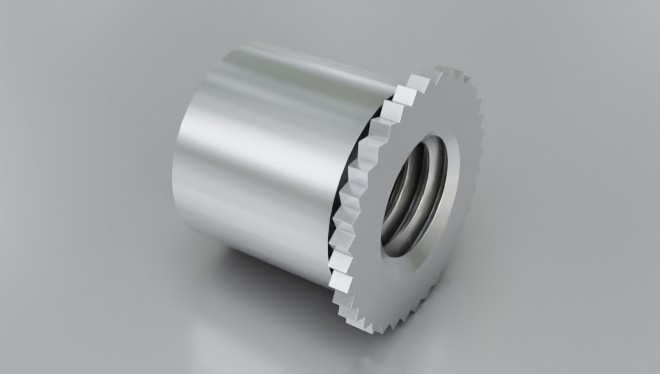

Material Code
Stainless steel = SF-MSO4
How to order
Type + Thread + Length
Example: SF-MSO4-1.6-2 or SF-MSO4-M2-3
| Thread |
Length |

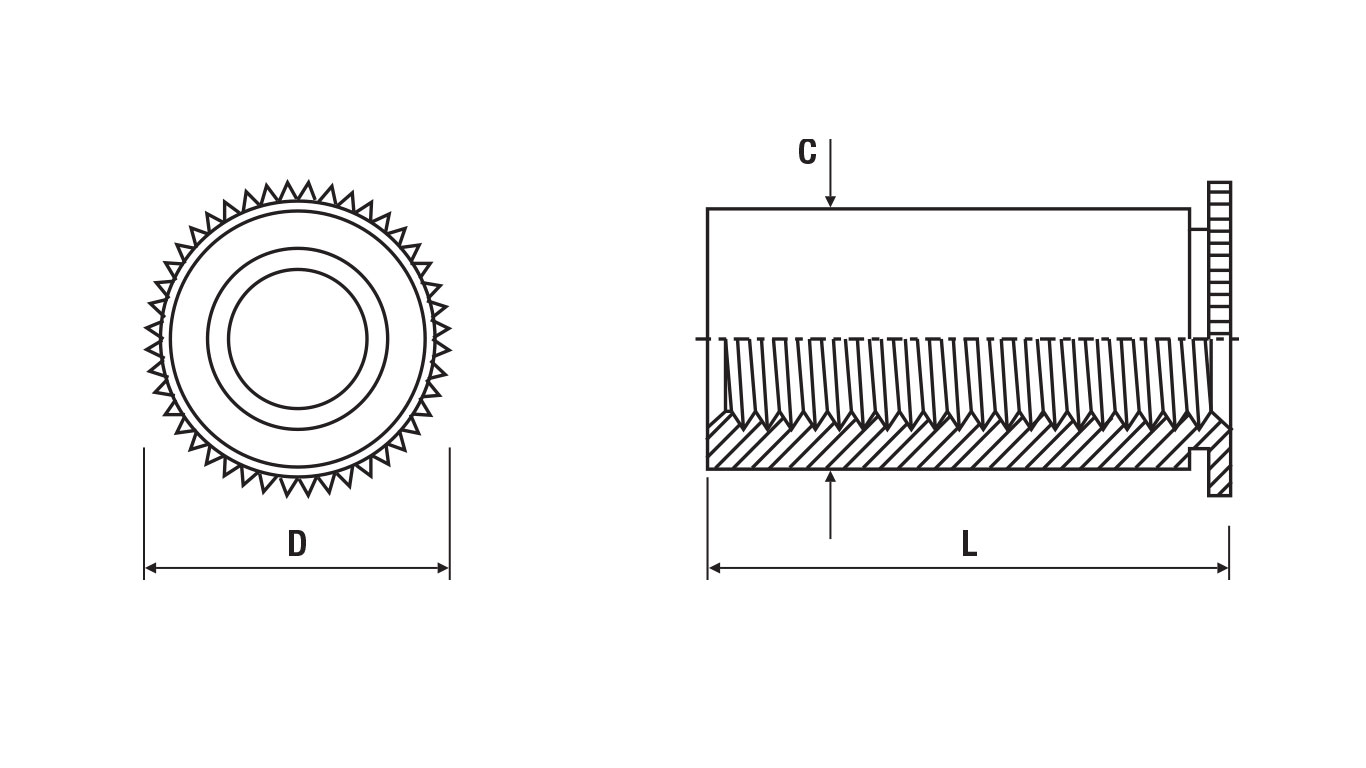

D Dia. mm |
C Dia. mm |
Sheet Thickness mm |
Hole Size mm |
Distance Centre Hole to Sheet Edge mm |
Please note! | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M1.6 | 2-3 | 3.16 | 2.38 | 0.3 | 2.41-2.46 | 3.16 | ||||||||||||||||
| M2 | 2-3 | 3.96 | 3.15 | 0.3 | 3.18-3.23 | 3.96 | ||||||||||||||||
