Type: SF-CHC or SF-CHA (1.6mm Sheet)

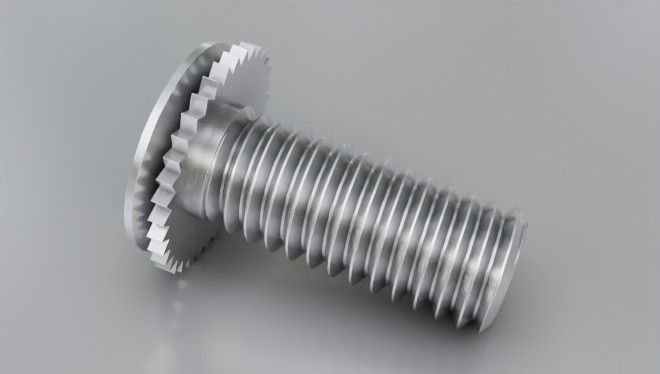

Type: SF-CFHC or SF-CFHA (2.4mm Sheet)

SF-CHC/SF-CHA

Lengths

6/8/10/12/20

Material Code

Stainless steel = SF-CHC or SF-CFHC
Aluminium = SF-CHA or SF-CFHA

How to order

Type + Thread + Length
Example:  SF-CHC-M3-10 or SF-CFHC-M5-16

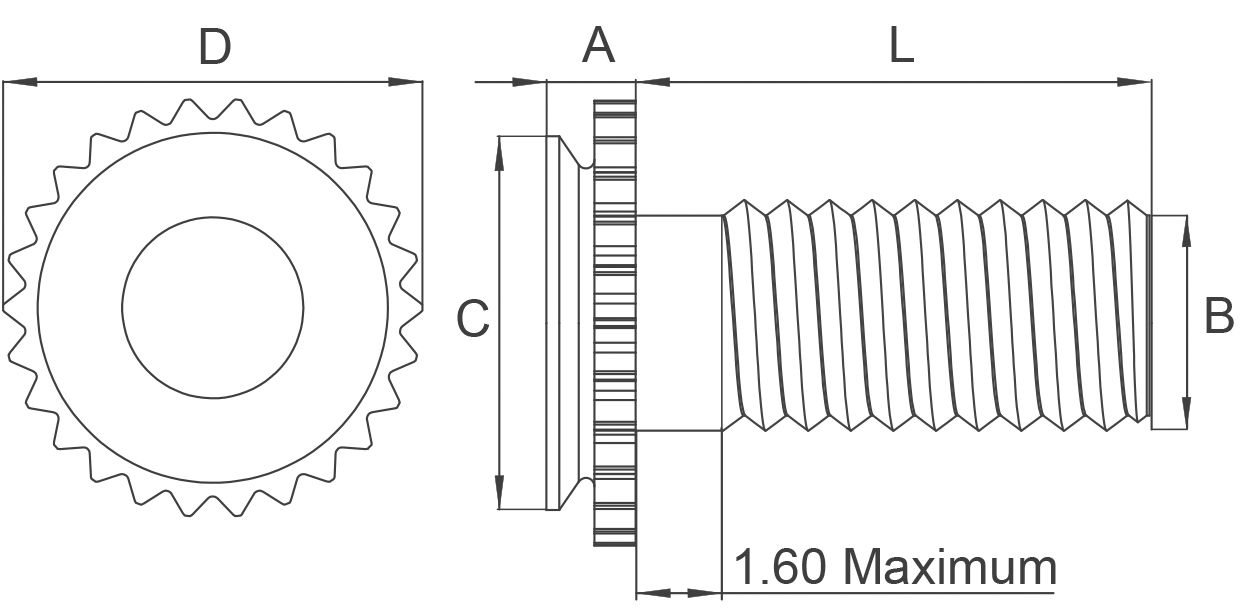

Thread A
1.6mm Sheet
max.
mm		 A
2.4mm Sheet
max.
mm		 C
max.
mm		 D
± 0.4
mm

L
±0.4
mm

 Blind Mounting
Hole ± 0.08
mm

Hole Depth
1.6mm Sheet
mm

 Hole Depth
2.4mm Sheet
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M3 1.04 1.83 4.35 5.21 6-20 4.37 1.10 1.91 4.0
M4 1.04 1.83 7.35 8.33 6-20 7.37 1.10 1.91 5.6
M5 1.04 1.83 7.90 8.89 10-20 7.93 1.10 1.91 6.4
