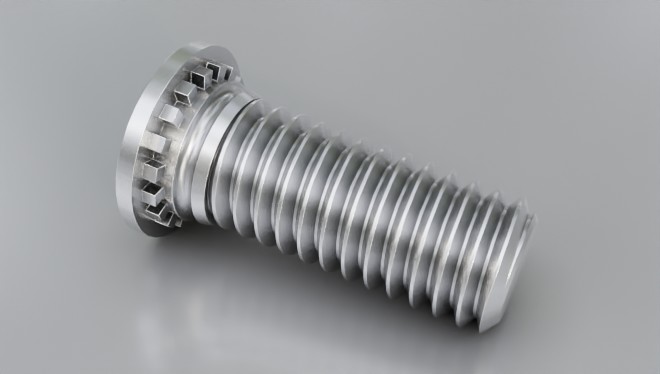

Lengths
5/6/8/10/12/15/16/18/20/22/25/28/30/35/38/40/45/50
Material Code
Steel/zinc = SF-FH
Stainless steel = SF-FHS
Grade400 Stainless steel = SF-FH4
How to order
Type + Thread + Length
Example: SF-FH-M4-10 or SF-FHS-M4-12 or SF-FH4-M3-8

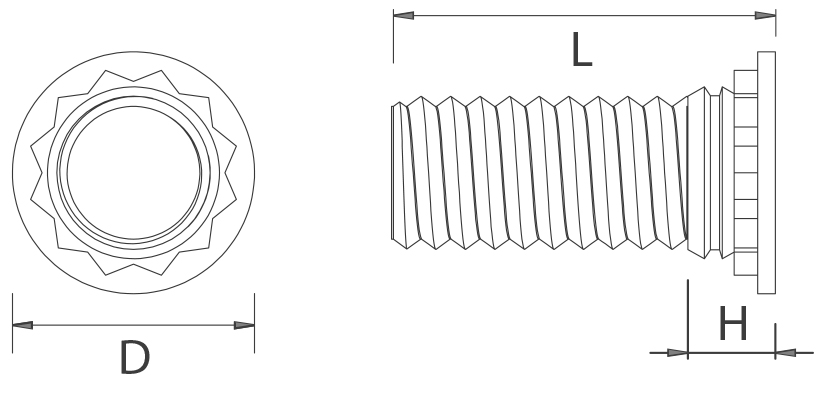

| Thread | D ± 0.4 mm |
H max. mm |
L ±0.4 mm |
Sheet Thickness min. mm |
Rec. Hole Size +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 3.5 | 1.95 | 6-20 | 1.0 | 2.0 | 5.2 | No L=15 | ||||||||||||||||||
| M2.5 | 4.1 | 1.95 | 6-20 | 1.0 | 2.5 | 5.4 | No L=16 | ||||||||||||||||||
| M3 | 4.6 | 2.1 | 5-35 | 1.0 | 3.0 | 5.6 | No L=28 | ||||||||||||||||||
| M4 | 5.9 | 2.4 | 6-50 | 1.0 | 4.0 | 7.2 | No L=40 | ||||||||||||||||||
| M5 | 6.5 | 2.7 | 8-50 | 1.0 | 5.0 | 7.2 | No L=45 | ||||||||||||||||||
| M6 | 8.2 | 3.0 | 8-50 | 1.6 | 6.0 | 7.9 | |||||||||||||||||||
| M8 | 9.6 | 3.7 | 10-50 | 2.4 | 8.0 | 9.6 | |||||||||||||||||||
