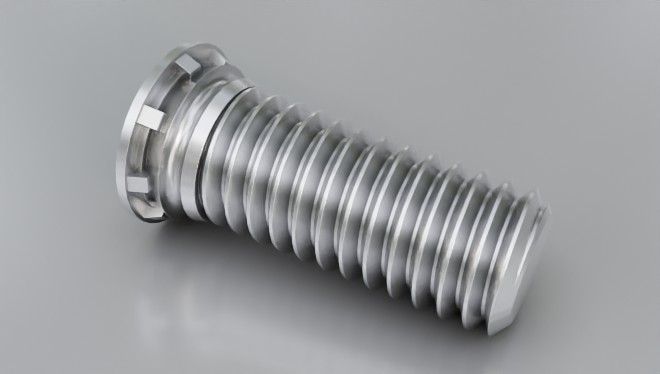

Lengths
6/8/10/12/15/18/20/25/30
Material Code
Steel/zinc = SF-FHL
Stainless steel = SF-FHLS
How to order
Type + Thread + Length
Example: SF-FHL-M3-18 or SF-FHLS-M4-10

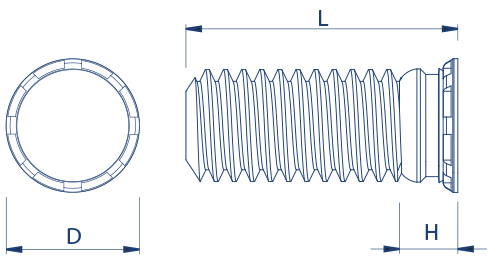

| Thread | D ±0.4 mm |
H max. mm |
L ±0.4 mm |
Sheet Thickness mm |
Rec. Hole Size +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2.5 | 3.15 | 2.1 | 6-18 | 1.0 | 2.5 | 2.8 | |||||||||||||||||||||||
| M3 | 3.65 | 2.1 | 6-25 | 1.0 | 3.0 | 3.3 | |||||||||||||||||||||||
| M4 | 4.65 | 2.4 | 6-30 | 1.0 | 4.0 | 4.3 | No L=25 | ||||||||||||||||||||||
| M5 | 5.9 | 2.7 | 10-20 | 1.0 | 5.0 | 5.6 | No L=18 | ||||||||||||||||||||||
