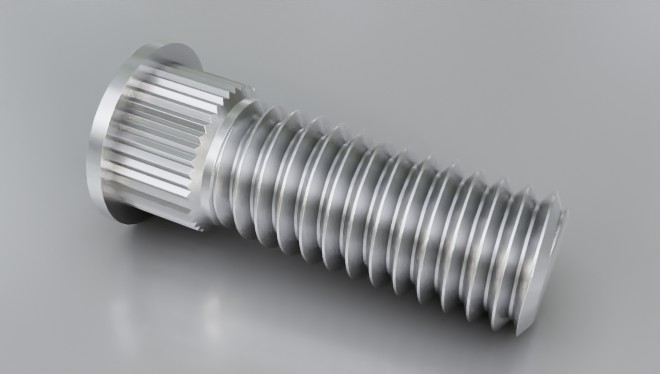

Lengths
6/8/10/12/15
Material Code
Phosphor bronze = SF-KFH
How to order
Type + Thread + Length
Example: SF-KFH-M3-10

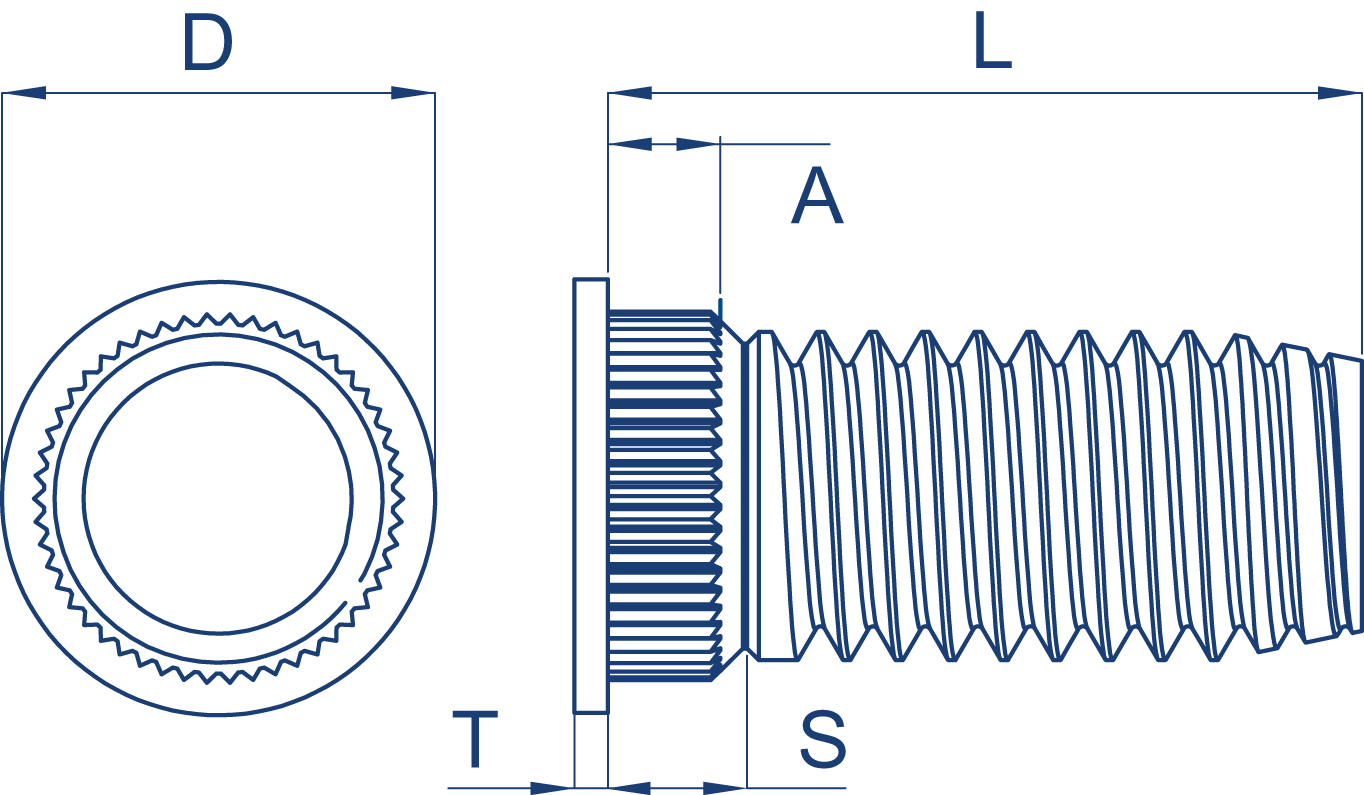

| Thread | A max. mm |
D ±0.25 mm |
L ±0.4 mm |
S max. mm |
T ±0.13 mm |
Sheet Thickness mm |
Rec. Hole Size +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2.5 | 1.65 | 4.10 | 8/10/15 | 2.3 | 0.51 | 1.53 | 2.6 | 3.3 | |||||||||||||||||||||||
| M3 | 1.65 | 4.58 | 6/8/10/12/15 | 2.3 | 0.51 | 1.53 | 3.0 | 3.8 | |||||||||||||||||||||||
| M4 | 1.65 | 5.74 | 8/10/12/15 | 2.3 | 0.51 | 1.53 | 4.2 | 5.1 | |||||||||||||||||||||||
| M5 | 1.65 | 6.6 | 10/12 | 2.3 | 0.51 | 1.53 | 5.0 | 5.3 | |||||||||||||||||||||||
