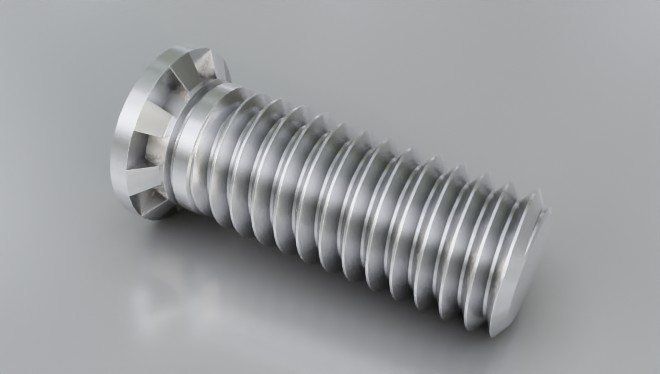

Type: SF-TFH or SF-TFHS

SF-TFH/SF-TFHS

Lengths

6/8/10/12/15/18/20

Material Code

Steel/zinc = SF-TFH

How to order

Type + Thread + Length
Example: SF-TFH-M3-12 or SF-TFH-M4-10

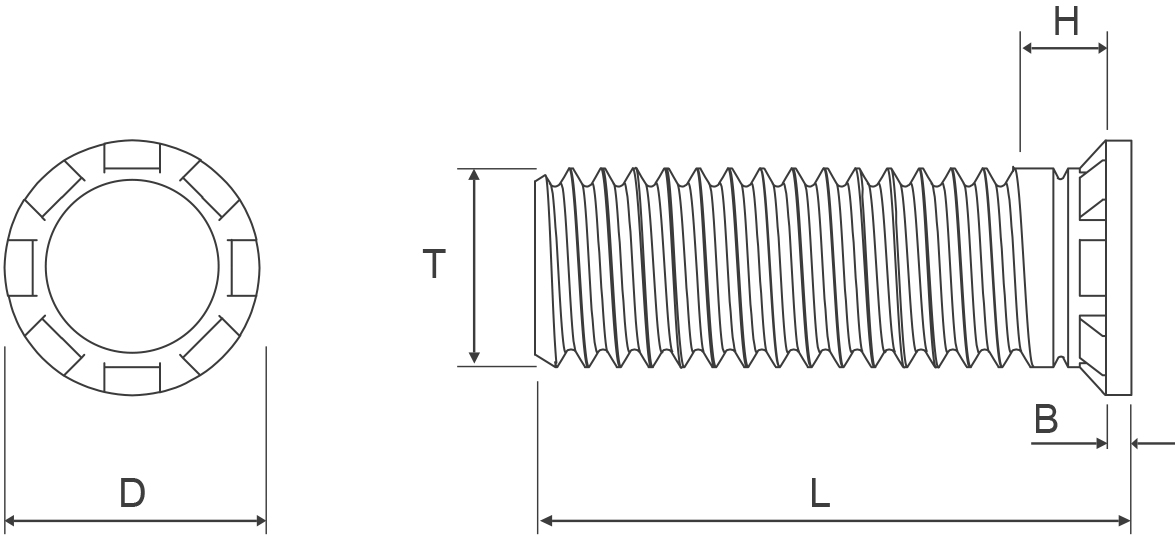

Thread B
max.
mm		 D
±0.25
mm		 H
max.
mm		 L
±0.4
mm		 Sheet Thickness
min.
mm		 Rec. Hole Size
+0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M3 0.64 4.5 1.8 6/8/10/12/15 0.51 3.0 5.6
M4 0.64 5.8 1.8 8/10/12/15/20 0.51 4.0 7.2
