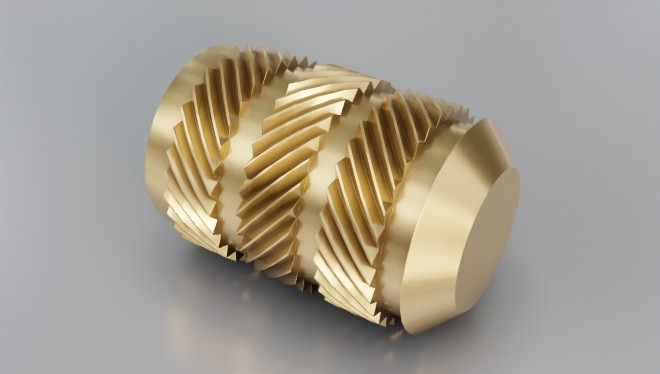

Type: Flow

Flow

Material Code

B = brass

Generel information
  • Blind ended - prevents ingress of plastic.
  • Counterbore prevents ingress of plastic and eases assembly on locating pins.
  • Rolled threads reduce risk of contamination of  mouldings due to metal swarf.
  • HIgh levels of performance in both pull-out and torque tests.
How to order

Type + Thread + Alt. Length (if applicable) + Material Code
Example: Flow-M3-B

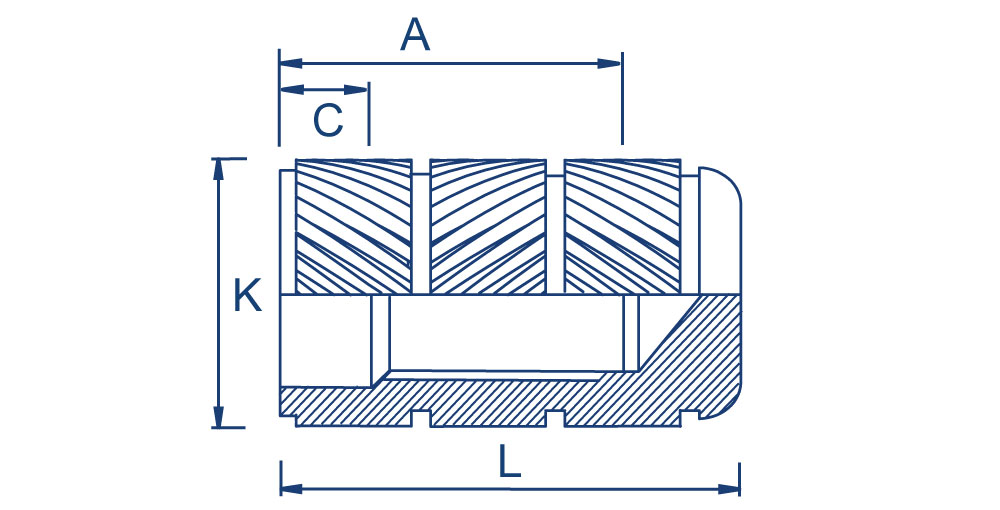

Thread L
mm

K
mm

 A
mm		 C
min.
mm		 Please note!
M2 5.5 3.4 3.6 1.0
M2.5 6.4 4.3 4.0 1.2
M3 7.3 4.7 4.6 1.3
M3.5 9.2 5.5 6.0 1.6
M4 10.2 6.3 6.7 1.8
M5 11.2 7.3 7.4 2.0
M6 14.4 9.8 8.1 2.0
M8 16.5 11.4 11.1 2.3
M10 17.9 13.8 11.9 2.4
