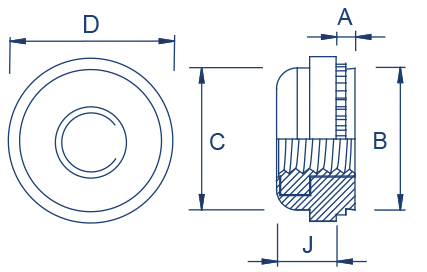

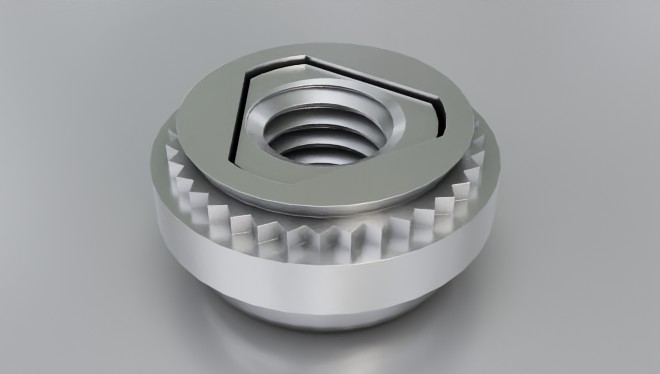

Type: SF-AS or SF-AC

SF-AS/SF-AC

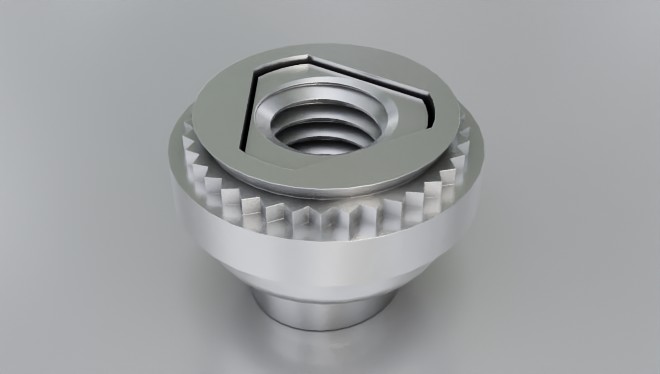

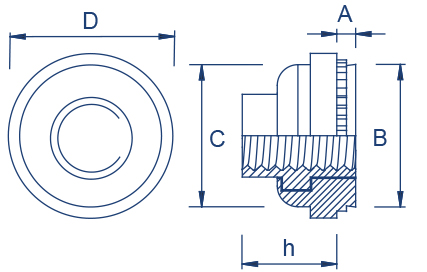

Type: SF-LAS or SF-LAC (Locking)

SF-LAS/SF-LAC (Locking)

Material Code

Steel/zink = SF-AS and SF-LAS
Stainless steel = SF-AC and SF-LAC

How to order

Type + Thread + Sheet Code
Example: SF-AS-M4-1 or SF-LAC-M4-2

Thread

A max.
mm

B max.
mm

C max.
mm

D
± 0.4
mm

J max.
mm

H max.
mm

Sheet
Code

Sheet
Thickness min.
mm

Rec. Hole Size
± 0.08
mm

 Distrance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M3 0.97 7.35 7.37 9.14 3.31 4.83 1 0.97 7.37 7.62
  1.38           2 1.38
M4 0.97 9.33 9.28 11.18 3.31 5.34 1 0.97 9.35 8.64
  1.38           2 1.38
M5 0.97 10.29 10.29 11.94 4.32 6.86 1 0.97 10.31 9.14
  1.38           2 1.38
M6 1.38 13.06 12.96 15.24 5.34 7.88 2 1.38 13.08 10.67
