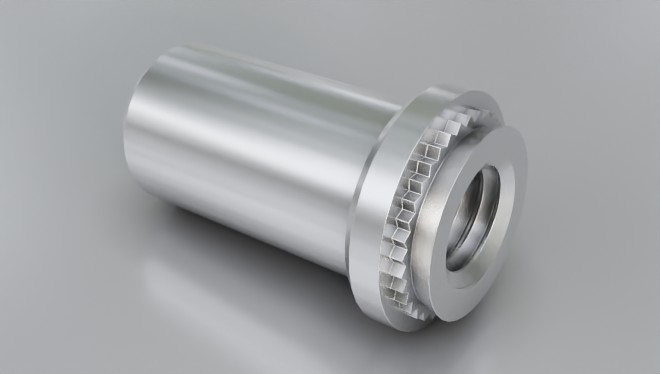

Type: SF-B or SF-BS

SF-B/SF-BS

Material Code

Steel/zinc = SF-B
Stainless steel = SF-BS

How to order

Type + Thread + Sheet Code
Example: SF-B-M5-2 or SF-BS-M5-1

Thread

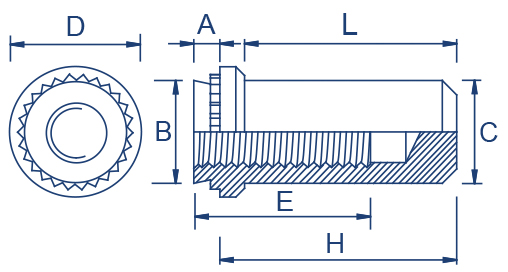

A
max.
mm

B
max.
mm

 C
max.
mm		 D
± 0.25
mm		 E
min.
mm		 H
± 0.25
mm		 L
max.
mm		 Sheet
Code		 Sheet
Thickness
min.
mm		 Rec. Hole Size
+ 0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please Note!
M3 0.97 4.20 3.84 6.35 5.3 9.6 8.5 1 1.0 4.22 4.8
  1.38             2 1.4
M4 0.97 5.38 5.20 7.95 7.1 11.2 9.8 1 1.0 5.41 6.9
  1.38             2 1.4
M5 0.97 6.33 6.02 8.75 7.1 11.2 9.8 1 1.0 6.35 7.1
  1.38             2 1.4
M6 1.38 8.73 7.80 11.1 7.8 14.3 12.7 1 1.4 8.75 8.6
  2.21             2 2.29
