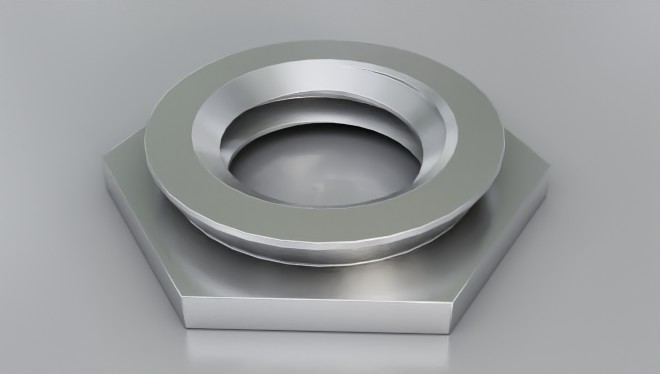

Type: SF-F or SF-F4

SF-F/SF-F4

Material Code

Stainless steel = SF-F
Grade400 stainless steel = SF-F4

How to order

Type + Thread + Sheet Code
Example: SF-F-M3-2 or SF-F-3.5M3-1

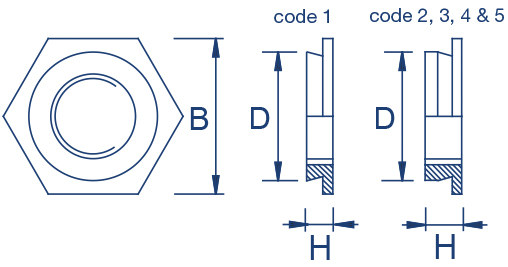

Thread B
± 0.2
mm		 D
max.
mm		 H
max.
mm		 Sheet
Code
min.
mm		 Sheet
Thickness
min.
mm		 Rec. Hole Size
+ 0.08
mm
 		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M2 4.8 4.35 1.53 1 1.53-2.30 4.37 6.0
      2.30 2 2.32
M2.5 4.8 4.35 1.53 1 1.53-2.30 4.37 6.0
      2.30 2 2.32
M3 4.8 4.35 1.53 1 1.53-2.30 4.37 6.0
      2.30 2 2.32
3.5M3 6.4 5.35 1.53 1 1.53-2.30 5.4 6.5
      2.30 2 2.32
M4 7.9 7.35 1.53 1 1.53-2.30 7.37 7.2
      2.30 2 2.32
M5 8.7 7.90 1.53 1 1.53-2.30 7.92 7.0
      2.30 2 2.32
M6 9.5 8.72 3.05 3 3,18-3.94 8.74 8.8
      3,84 4 3.96-4.72
      4,63 5 4.75
