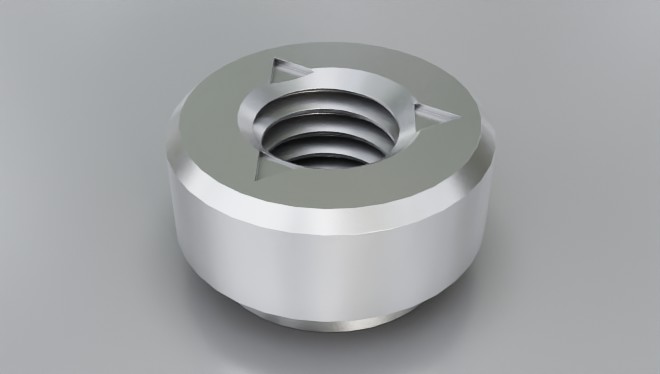

Type: SF-SL

SF-SL

Material Code

Steel/zinc = SF-SL

How to order

Type + Thread + Sheet Code
Example:  SF-SL-M4-2

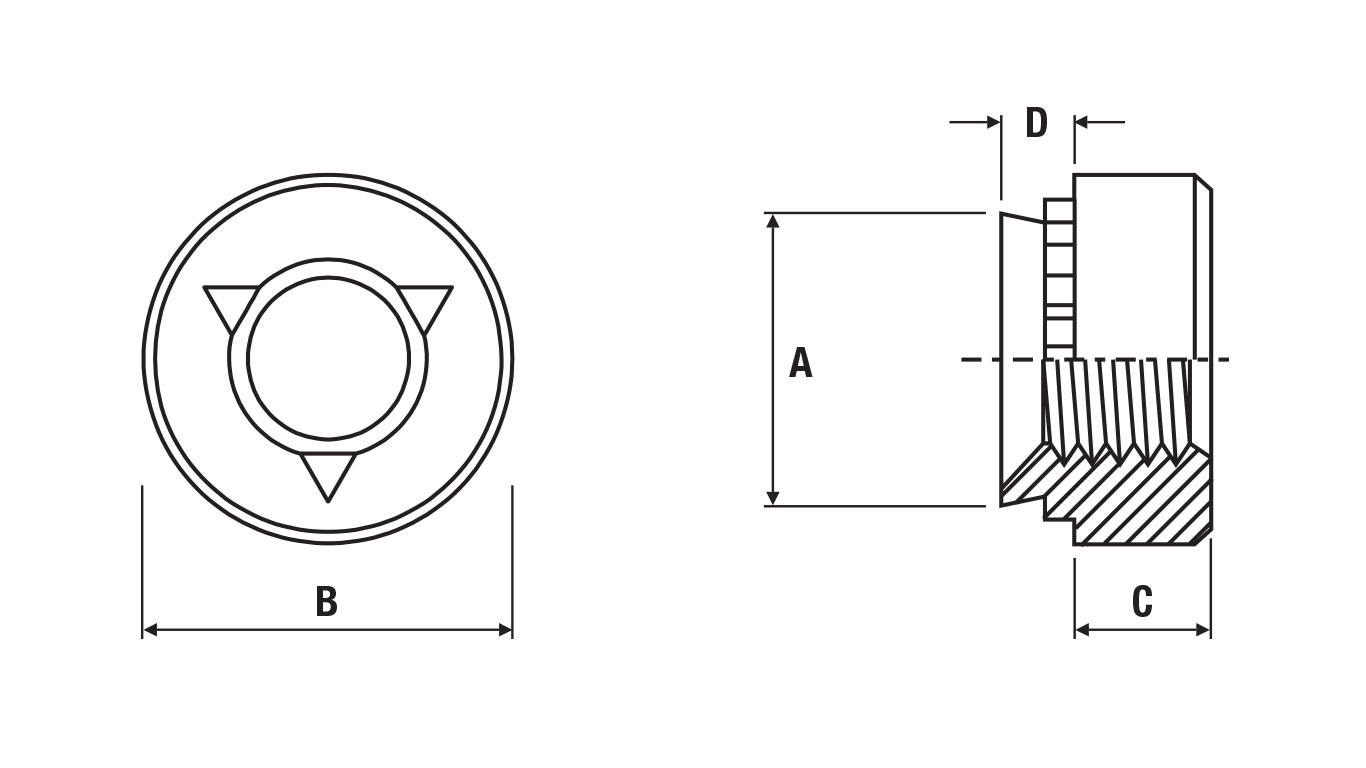

Thread A
mm		 B
mm		 C
mm		 D
mm		 Sheet
Code		 Sheet Thickness
min.
mm		 Rec. Hole Size
+0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M3 4.2 6.35 1.5 0.98 1 1.0 4.22 4.8
        1.38 2 1.4
M3.5 4.73 7.11 1.5 0.98 1 1.0 4.75 5.6
        1.38 2 1.4
M4 5.38 7.87 2.0 0.98 1 1.0 5.41 6.9
        1.38 2 1.4
M5 6.33 8.64 2.0 0.98 1 1.0 6.35 7.1
        1.38 2 1.4
M6 8.73 11.18 4.08 1.38 1 1.4 8.75 8.6
        2.21 2 2.3
M8 10.47 12.07 5.47 1.38 1 1.4 10.50 9.7
        2.21 2 2.3
