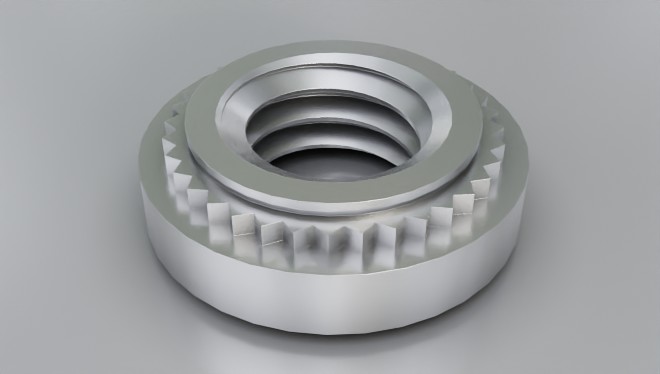

Material Code
Grade300 stainless steel = SF-SMPS
How to order
Type + Thread
Example: SF-SMPS-M3

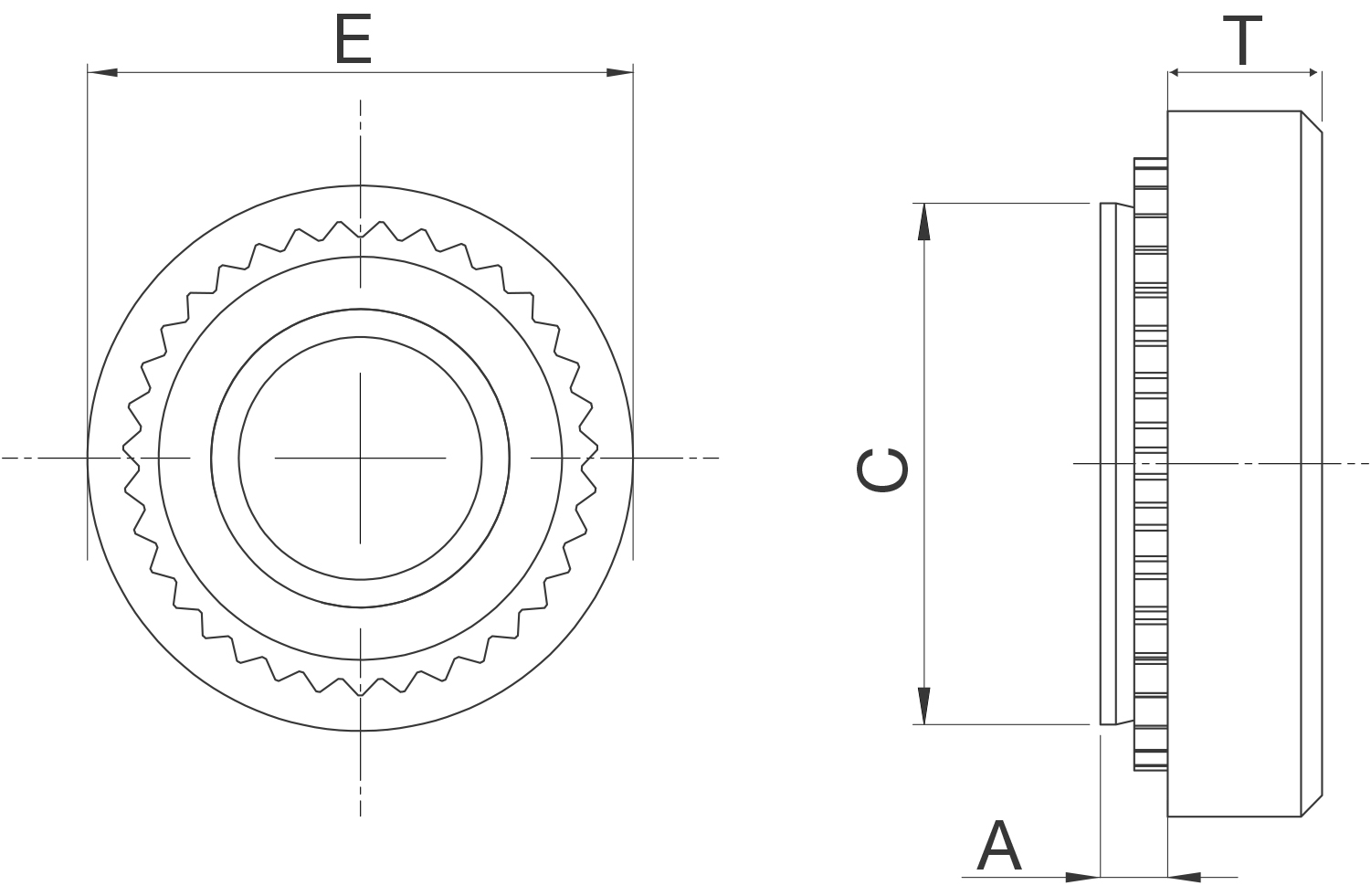

| Thread | A max. mm |
C max. mm |
E ±0.25 mm |
T ±0.25 mm |
Sheet Thickness min. mm |
Rec. Hole Size +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2.5 | 0.61 | 3.79 | 5.6 | 1.4 | 0.64 | 3.80 | 3.7 | |||||||||||||||||||||||
| M3 | 0.61 | 4.22 | 5.6 | 1.4 | 0.64 | 4.24 | 4.3 | |||||||||||||||||||||||
