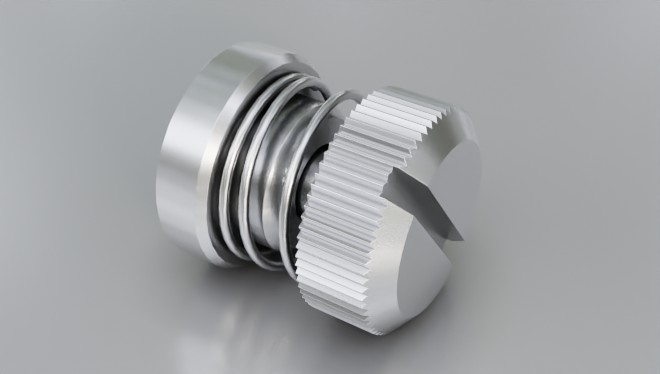

Type: SF-PF31 or SF-PF32

SF-PF31/SF-PF32

Material Code

Steel/nickel = SF-PF31/SF-PF32

How to order

Type + Thread + Screw Length Code
Example: SF-PF31-M4-30 or SF-PF32-M5-30

Thread M3 M4 M5 M6 Please note!
Type SF-PF31 SF-PF32 SF-PF31 SF-PF32 SF-PF31 SF-PF32 SF-PF32
Screw Length Code 30 30 30 35

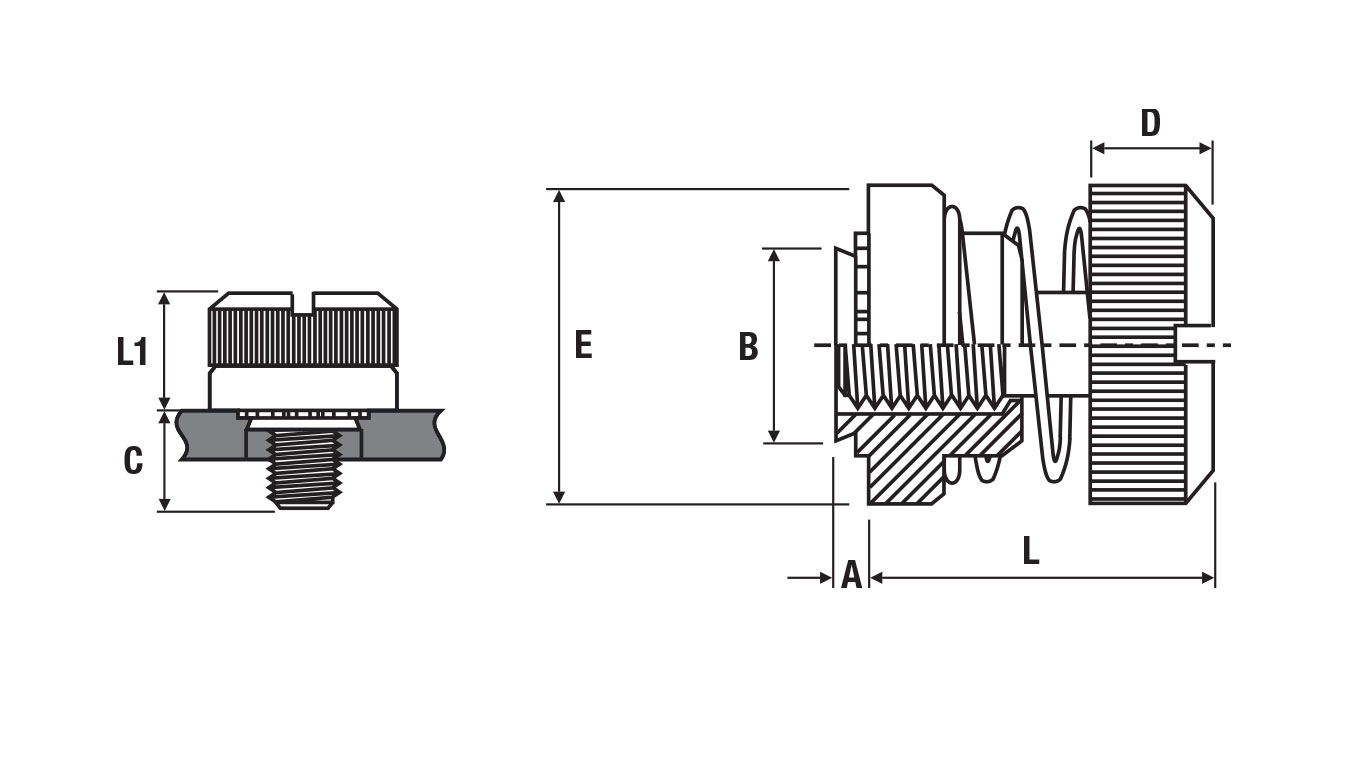

A max. mm 0.97 1.48 0.97 1.48 0.97 1.48 1.48
B max. mm 1.0 1.5 1.0 1.5 1.0 1.5 1.5
C ±0.4 mm 5.5 6.4 8.0 9.5
D ±0.13 mm 5.48 6.38 7.98 9.48
E ±0.25 mm 15.11 15.24 15.37 17.15
L nom. mm 5.13 5.26 5.59 6.12
L1 max. mm 10.31 11.89 13.46 15.88
Sheet Thickness min. mm 7.62 7.62 7.62 8.89
Rec. Hole Size +008 mm 8.26 8.38 8.51 9.78
Distrance Centre Hole to Sheet Edge min. mm 6.6 7.37 8.38 9.65
