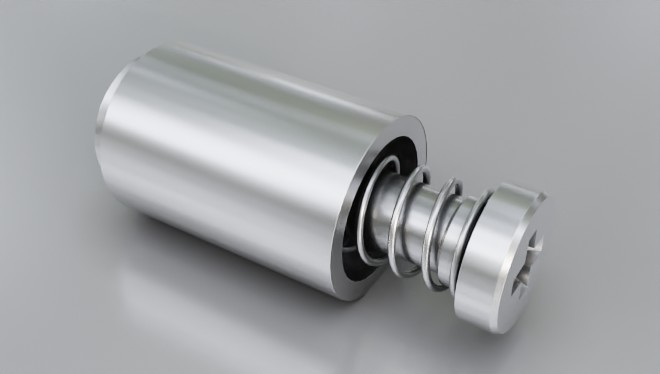

Type: SF-PFC2P

SF-PFC2P

Material Code

Stainless steel = SF-PFC2P

How to order

Type + Thread + Screw Length Code
Example:  SF-PFC2P-M3-62 or SF-PFC2P-M5-72

Thread M3 M4 M5 M6 Please note!
Screw Length Code 40 62 50 72 94 50 72 94 60 82 04
A max. mm 1.53 1.53 1.53 1.53
B max. mm 6.71 7.9 8.72 10.47
C ±0.4 mm 6.4 9.5 7.9 11.1 41.3 7.9 11.1 14.3 9.5 12.7 15.9
Driver Size PH1 PH2 PH2 PH3
E ±0.25 mm 7.92 9.53 10.31 11.89
L nom. mm 13.72 17.91 17.91 22.99
L1 max. mm 9.4 12.19 12.45 15.75
Sheet Thickness min. mm 1.53 1.53 1.53 1.53
Rec. Hole Size +0.08 mm 6.73 7.92 8.74 10.49
Screw Protrusion before installation ± 0.64 mm 0 3.2 0 3.2 6.4 0 3.2 6.4 0 3.2 6.4
Distrance Centre Hole to Sheet Edge min. mm 6.35 7.87 8.63 9.65
