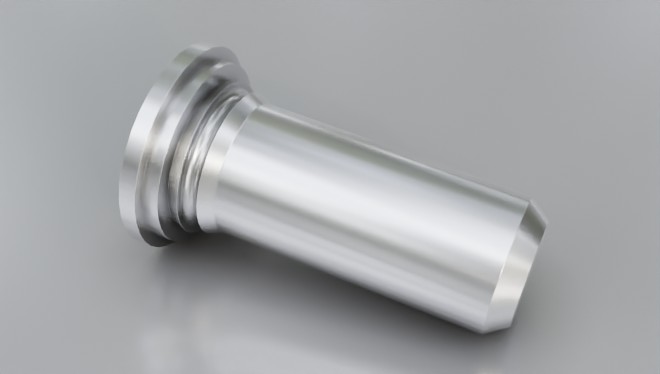

Lengths
3/4/6/8/10/12/16/20
Material Code
Steel/zinc = SF-TP
Stainless steel = SF-TPS
Grade 400 stainless steel = SF-TP4
How to order
Type + Pin Dia. + Length
Example: SF-TP-3-6 or SF-TPS-4-10 or SF-TP4-6-12

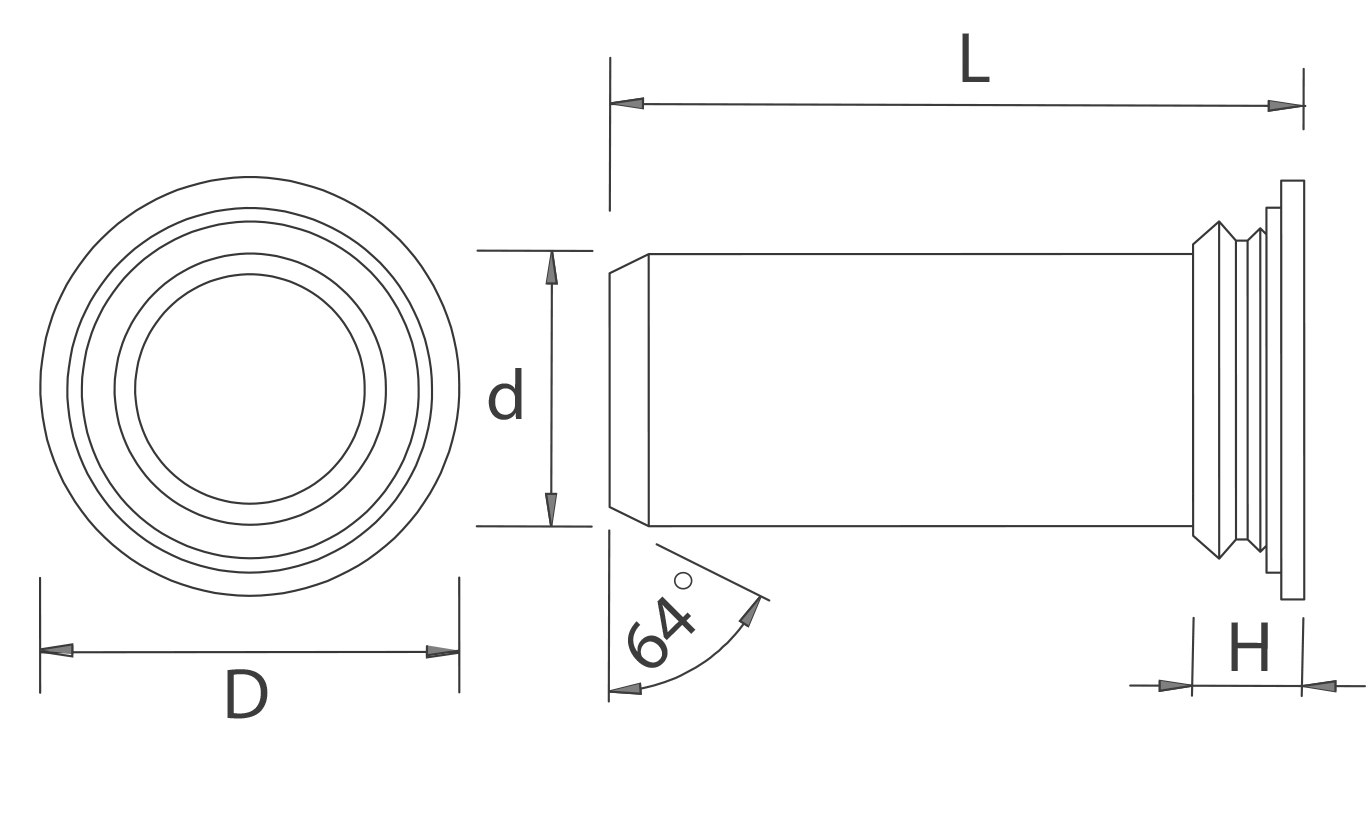

| Pin Dia. ±0.05 mm |
D ±0.4 mm |
H. max. mm |
L ±0.4 mm |
Sheet Thickness min. mm |
Rec. Hole Size mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 5.20 | 2.29 | 3/4/6/8/10/12/16 | 1.0 | 3.5 | 6.40 | ||||||||||||||||||||
| 4 | 6.12 | 2.29 | 6/8/10/12/16 | 1.0 | 4.5 | 7.10 | ||||||||||||||||||||
| 5 | 7.19 | 2.29 | 8/10/12/16/20 | 1.0 | 5.5 | 7.61 | ||||||||||||||||||||
| 6 | 8,13 | 2.29 | 12/16/20 | 1.0 | 6.5 | 7.90 | ||||||||||||||||||||
