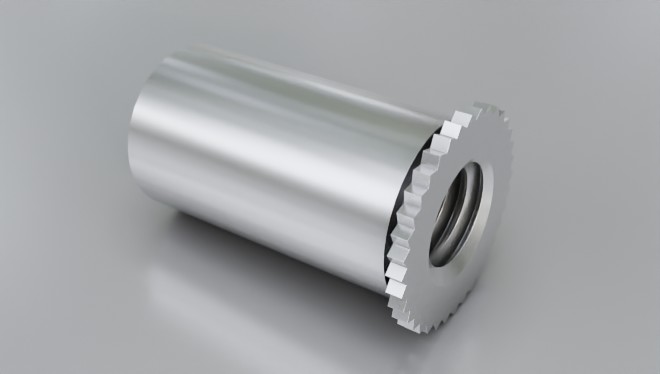

Type: SF-DSO or SF-DSOS

SF-DSO/SF-DSOS

Material Code

Steel/zinc = SF-DSO
Stainless steel = SF-DSOS

How to order

Type + Thread + Length
Example: SF-DSO-M3-7 or SF-DSOS-M3-7

Thread C
max.
mm		 D
nom.
mm		 L
+0.05/-0.13
mm		 Sheet Thickness
mm		 Rec. Hole Size
+0.08
mm		 Distrance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M3 4.2 4.92 7.0 0.94 - 6.35 4.2 3.2
