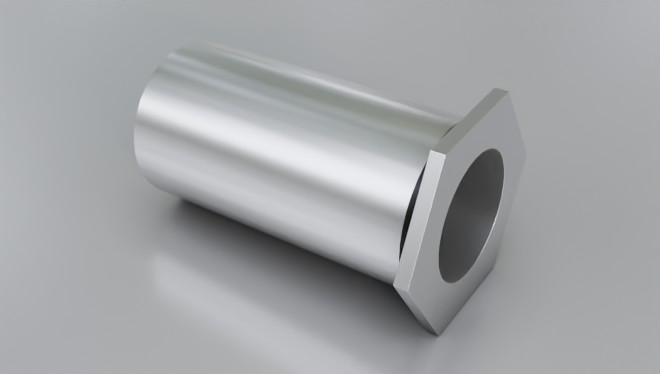

Lengths
3/4/5/6/8/10/12/14/16/18/20/22
Material Code
Steel/zinc = SF-SO
Stainless steel = SF-SOS
How to order
Type + Dia. Code + Length
Example: SF-SO-43.1-8 or SF-SOS-84.1-8

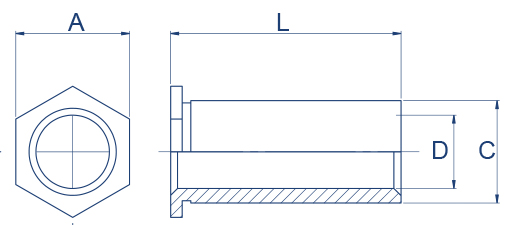

| Dia. Code |
A |
C -0.13 mm |
D Counter-bore -0.13 mm |
L +0.05/-0.13 mm |
Sheet Thickness min. mm |
Rec. Hole Size +0.08 mm |
Distrance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43.1 | 4.8 | 4.2 | 3.1 | 3/4/8/10/12 | 1.00 | 4.22 | 6.0 | |||||||||||||||||||||||
| 63.1 | 6.4 | 5.39 | 3.1 | 4/5/6/8/10/12/14/16 | 1.00 | 5.41 | 6.8 | |||||||||||||||||||||||
| 63.6 | 6.4 | 5.39 | 3.6 | 4/5/6/8/10/12/14/18 | 1.00 | 5.41 | 6.8 | |||||||||||||||||||||||
| 84.1 | 7.9 | 7.12 | 4.1 | 3/4/6/8/10/12/14/18 | 1.27 | 7.14 | 8.0 | |||||||||||||||||||||||
| 85.1 | 7.9 | 7.12 | 5.1 | 3/4/6/8/10/12/14/22 | 1.27 | 7.14 | 8.0 | |||||||||||||||||||||||
