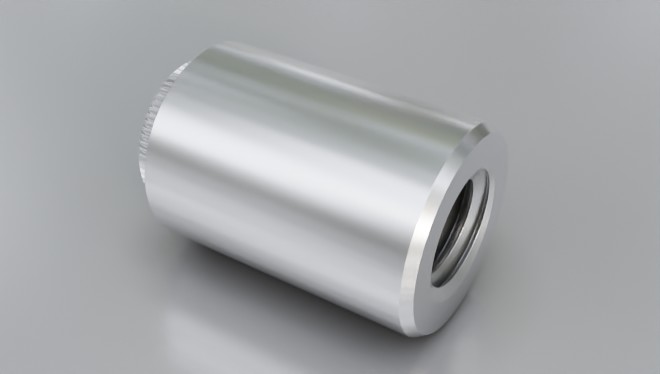

Lengths
3/4/5/6/8/10/12/14
Material Code
Steel/zinc = SF-KFE
Stainless steel = SF-KFSE
How to order
Type + Thread + Length
Example: SF-KFE-M4-10 or SF-KFSE-M3-6
| Thread | A ±0.13 mm |
B ±0.08 mm |
C max. mm |
L ±0.13 mm |
Sheet Thickness min. mm |
Rec. Hole SIze +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 5.56 | 4.68 | 1.53 | 3/4/5/6/8/10/12/14 | 1.53 | 4.22 | 4.4 | Stainless L= 4/6/8/10 | ||||||||||||||||||||||
| M4 | 8.74 | 6.75 | 1.53 | 4/10 | 1.53 | 6.4 | 6.4 | Only KFE | ||||||||||||||||||||||
