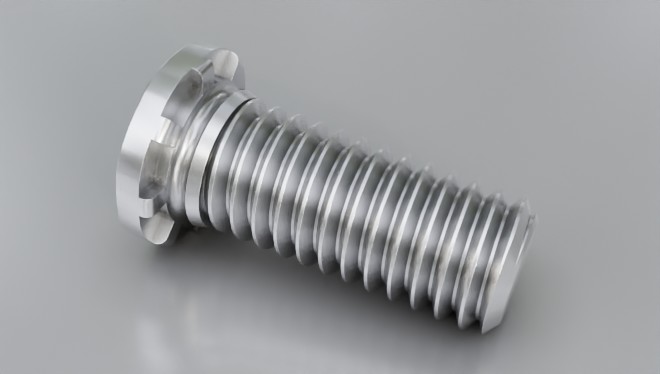

Material Code
Steel/zinc = SF-HFH
Stainless steel = SF-HFHS
How to order
Type + Thread + Length
Example: SF-HFH-M5-15 or SF-HFHS-M8-20

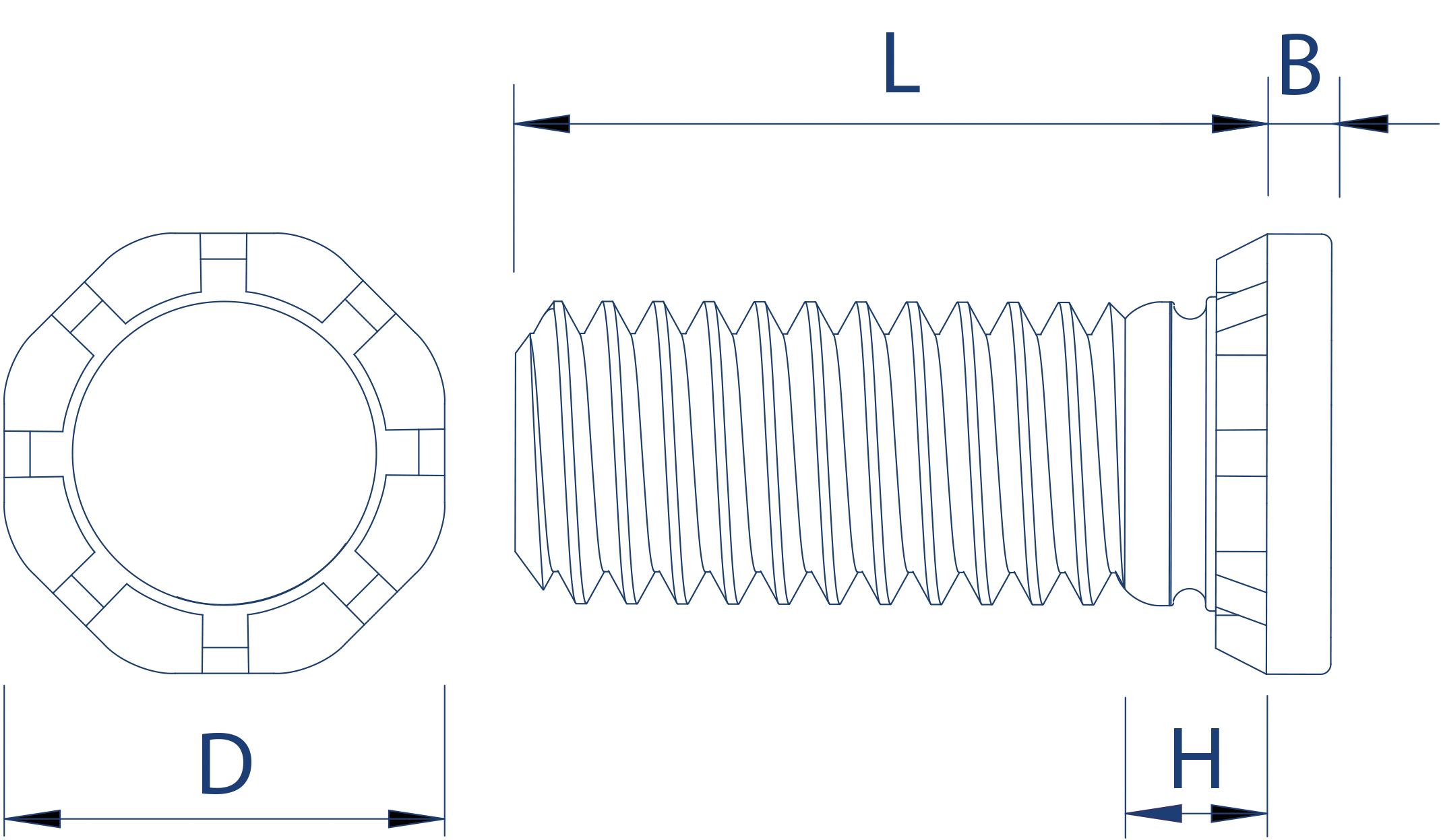

| Thread | B max. mm |
D ± 0.25 mm |
H max. mm |
L ±0.4 mm |
Sheet Thickness min. mm |
Rec. Hole Size |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | 2.7 | 7.8 | 1.14 | 15 | 1.3 | 5.0 | 10.7 | ||||||||||||||||||||||||
| M6 | 2.8 | 9.4 | 1.27 | 15/20/25/30/40 | 1.5 | 6.0 | 11.5 | ||||||||||||||||||||||||
| M8 | 3.5 | 12.5 | 1.78 | 15/20/25/30/35/40 | 2.0 | 8.0 | 12.7 | ||||||||||||||||||||||||
| M10 | 4.1 | 15.7 | 2.29 | 15/20/25/30/35/40 | 2,3 | 10.0 | 13.7 | ||||||||||||||||||||||||
