Material Code
B = brass
Generel information
- Designed to cope with hard brittle thermoset materials.
- High torque resistance.
- Low bursting stress allows the use of thinner wall bosses reducing risk of sink marks.
- Self-aligning - assists installation.
How to order
Type + Thread+ Alt. Length (if applicable) + Material Code

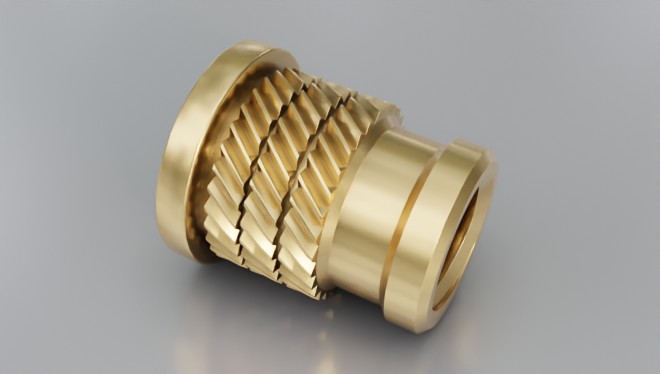

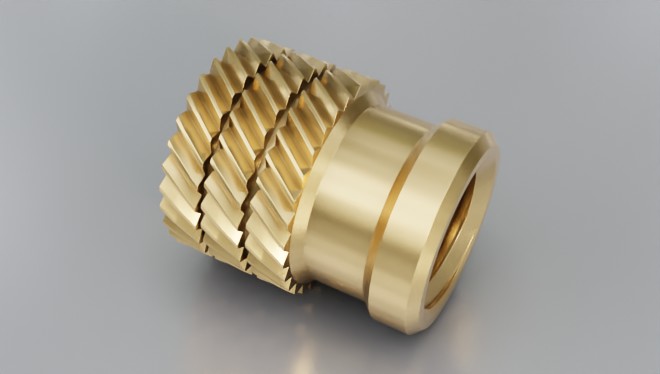

Example: Broach-M5-B or BroachH-M4-B

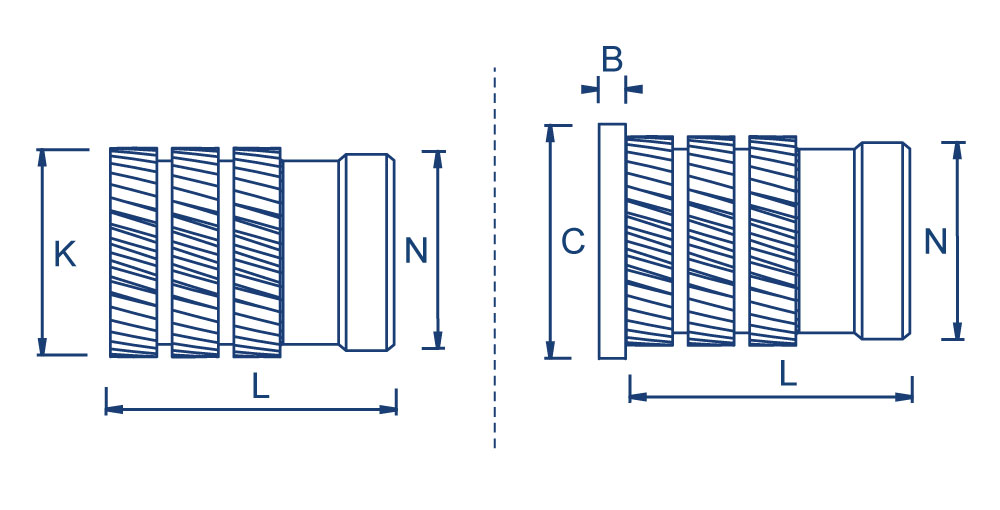

| Thread | L mm |
B mm |
C mm |
K mm |
N mm |
Rec. Hole Size -0.00 / +0.10 mm |
Min. Wall Thickness mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 4.1 | 0.51 | 4.8 | 3.3 | 3.0 | 3.1 | 1.6 | |||||||||||||||||||||||
| M2.5 | 5.3 | 0.58 | 5.5 | 4.2 | 3.7 | 3.8 | 2.0 | |||||||||||||||||||||||
| M3 | 5.3 | 0.58 | 5.5 | 4.2 | 3.7 | 3.8 | 2.0 | |||||||||||||||||||||||
| M3.5 | 6.3 | 0.74 | 6.4 | 5.0 | 4.5 | 4.6 | 2.5 | |||||||||||||||||||||||
| M4 | 7.4 | 0.89 | 7.1 | 5.8 | 5.3 | 5.4 | 2.5 | |||||||||||||||||||||||
| M5 | 8.3 | 1.07 | 7.9 | 6.6 | 6.1 | 6.2 | 2.5 | |||||||||||||||||||||||
| M6 | 9.2 | 1.32 | 9.5 | 8.2 | 7.7 | 7.8 | 2.8 | |||||||||||||||||||||||
| M8 | 9.2 | 1.32 | 11.1 | 9.7 | 9.3 | 9.3 | 3.8 | |||||||||||||||||||||||
| M10 | 9.2 | 1.57 | 14.0 | 12.7 | 12.2 | 12.3 | 5.0 | |||||||||||||||||||||||
