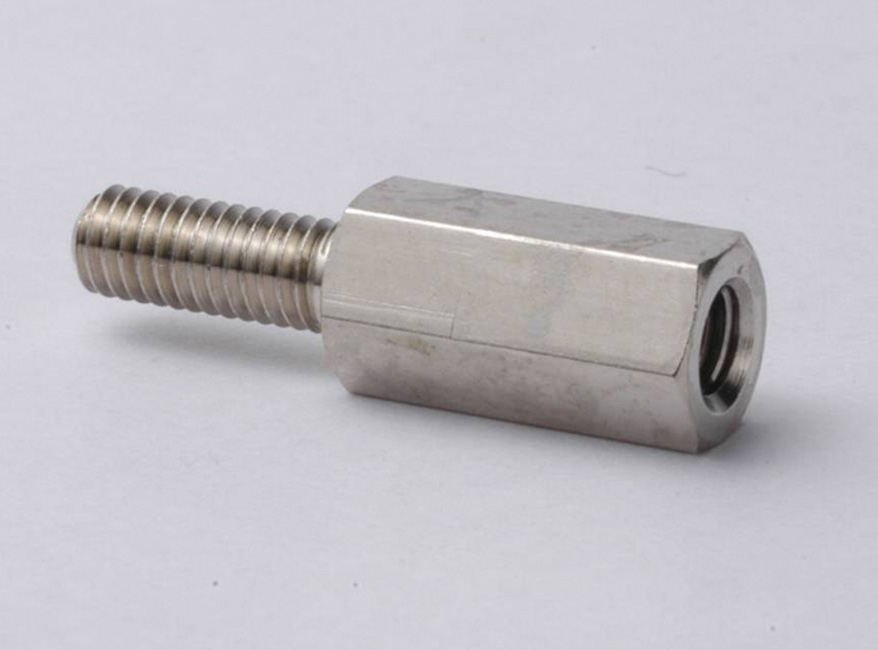

Lengths
5-8-10-12-15-18-20-25-30-35-40-45-50-55-60-70-80
Material Code
B = brass nickel plated
S = mild steel zinc plated
SS = stainless steel
How to order
Type + Thread + Outer Dia. + Length + Material Code
Example: MF-M4-70-15-B or MF-M3-55-10D6-SS (customized D length=6mm)

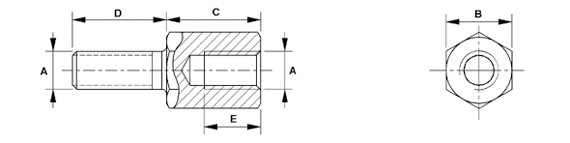

A Thread |
B Outer Dia. mm |
C Length mm |
D / E |
Please note! | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Min. | Max | D | E | ||||||||||||||||||
M2 | 4.0 | 5 | 5 | 6 | 3 | Can be customized | |||||||||||||||
M2 | 4.0 | 8 | 8 | 6 | 4 | Can be customized | |||||||||||||||
M2 | 4.0 | 10 | 10 | 6 | 6 | Can be customized | |||||||||||||||
M2 | 4.0 | 12 | 40 | 6 | 8 | Can be customized | |||||||||||||||
M2.5 | 5.0 | 5 | 5 | 6 | 3 | Can be customized | |||||||||||||||
M2.5 | 5.0 | 8 | 8 | 6 | 4 | Can be customized | |||||||||||||||
M2.5 | 5.0 | 10 | 10 | 6 | 6 | Can be customized | |||||||||||||||
M2.5 | 5.0 | 12 | 40 | 6 | 8 | Can be customized | |||||||||||||||
M3 | 5.0 | 5 | 5 | 8 | 3 | Can be customized | |||||||||||||||
M3 | 5.0 | 5 | 8 | 8 | 4 | Can be customized | |||||||||||||||
M3 | 5.0 | 10 | 10 | 8 | 6 | Can be customized | |||||||||||||||
M3 | 5.0 | 12 | 20 | 8 | 8 | Can be customized | |||||||||||||||
M3 | 5.0 | 25 | 80 | 10 | 10 | Can be customized | |||||||||||||||
M3 | 5.5 | 5 | 5 | 8 | 3 | Can be customized | |||||||||||||||
M3 | 5.5 | 8 | 8 | 8 | 4 | Can be customized | |||||||||||||||
M3 | 5.5 | 10 | 10 | 8 | 6 | Can be customized | |||||||||||||||
M3 | 5.5 | 12 | 20 | 8 | 8 | Can be customized | |||||||||||||||
M3 | 5.5 | 25 | 80 | 10 | 10 | Can be customized | |||||||||||||||
M4 | 7.0 | 5 | 5 | 8 | 2,5 | Can be customized | |||||||||||||||
M4 | 7.0 | 8 | 8 | 8 | 4 | Can be customized | |||||||||||||||
M4 | 7.0 | 10 | 10 | 8 | 6 | Can be customized | |||||||||||||||
M4 | 7.0 | 12 | 20 | 8 | 8 | Can be customized | |||||||||||||||
M4 | 7.0 | 25 | 80 | 10 | 10 | Can be customized | |||||||||||||||
M5 | 8.0 | 5 | 5 | 8 | 2,5 | Can be customized | |||||||||||||||
M5 | 8.0 | 5 | 8 | 8 | 4 | Can be customized | |||||||||||||||
M5 | 8.0 | 8 | 10 | 8 | 6 | Can be customized | |||||||||||||||
M5 | 8.0 | 12 | 20 | 8 | 8 | Can be customized | |||||||||||||||
M5 | 8.0 | 25 | 80 | 10 | 10 | Can be customized | |||||||||||||||
M6 | 10.0 | 10 | 10 | 8 | 6 | Can be customized | |||||||||||||||
M6 | 10.0 | 12 | 15 | 8 | 8 | Can be customized | |||||||||||||||
M6 | 10.0 | 18 | 20 | 8 | 10 | Can be customized | |||||||||||||||
M6 | 10.0 | 25 | 80 | 10 | 10 | Can be customized | |||||||||||||||
M8 | 13.0 | 15 | 15 | 14 | 8 | Can be customized | |||||||||||||||
M8 | 13.0 | 18 | 20 | 14 | 12 | Can be customized | |||||||||||||||
M8 | 13.0 | 25 | 80 | 14 | 15 | Can be customized |
