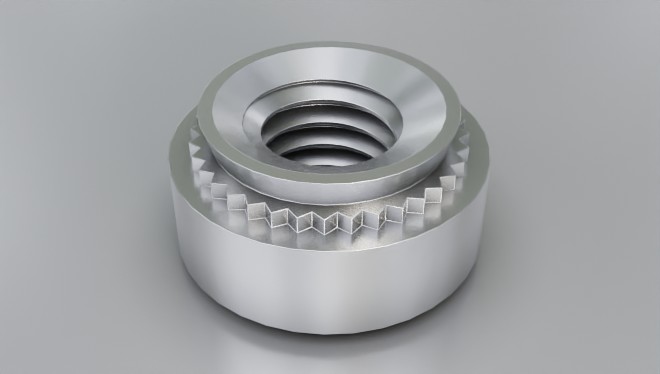

Type: SF-H

SF-H

Material Code

Steel/zinc = SF-H

How to order

Type + Thread
Example: SF-H-M10

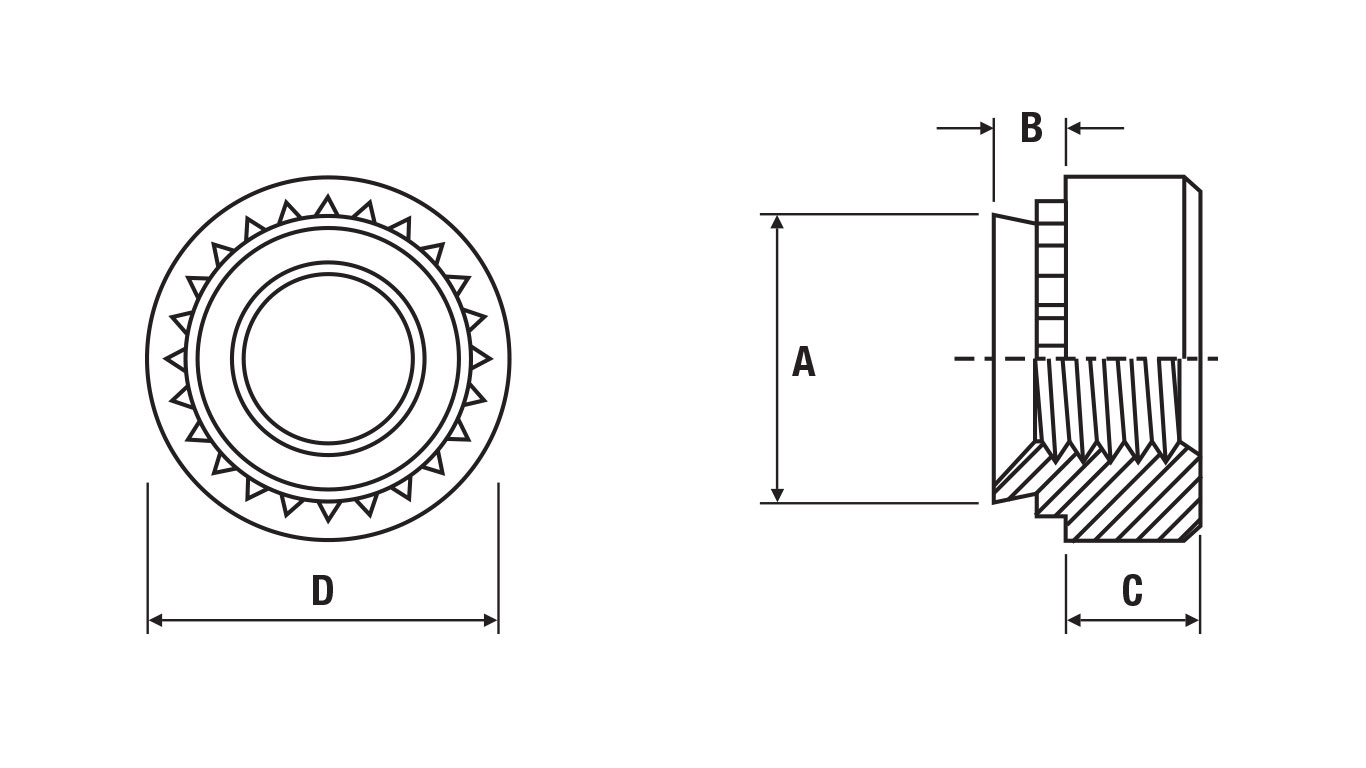

Thread A
mm		 B
mm		 C
mm		 D
mm		 Sheet Thickness
min.
mm		 Rec. Hole Size
+0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm

Please note!
M10 12.67 1.48 7.9 16.5 1.48 12.70 - 12.83 12.00
