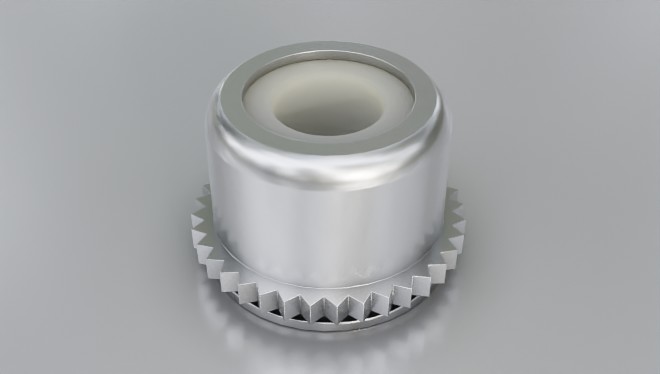

Material Code
Steel/zinc = SF-PL
Stainless steel = SF-PLC
How to order
Type + Thread
Example: SF-PL-M3 or SF-PLC-M4

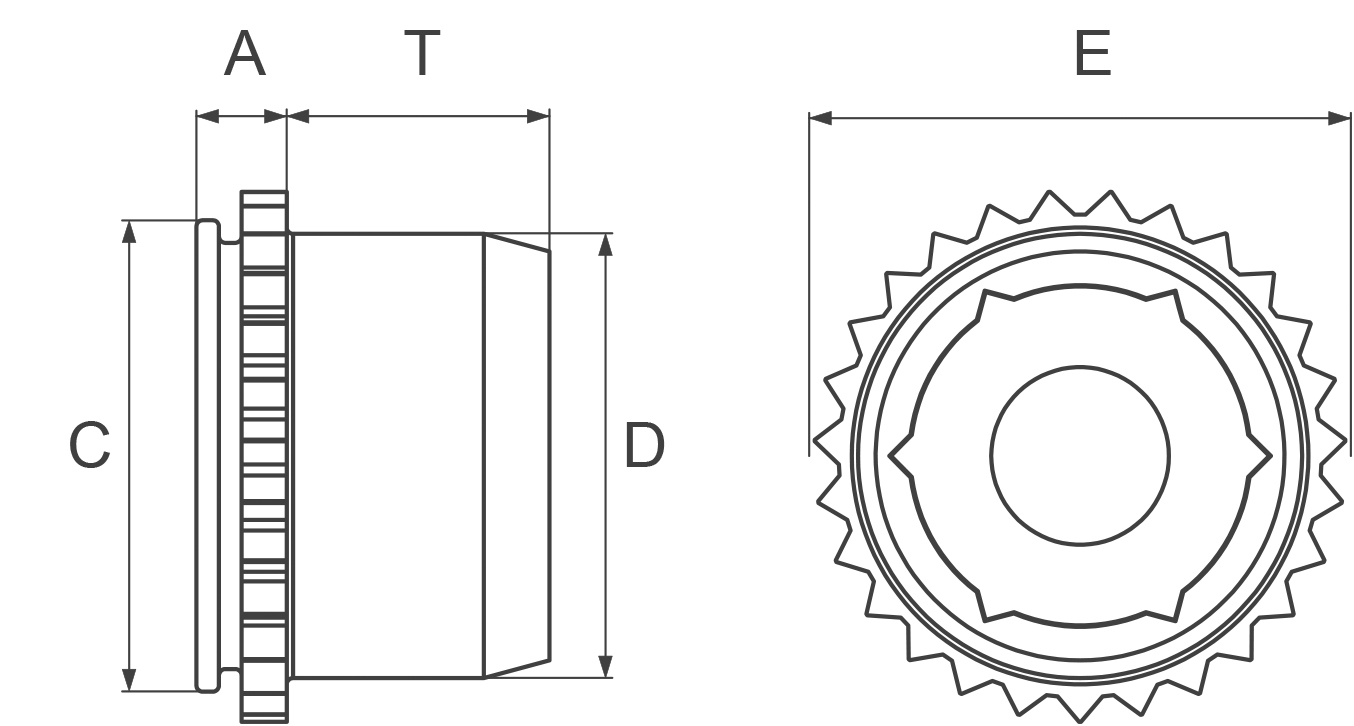

| Thread | A max. mm |
C max. mm |
D |
E max. mm |
T max. mm |
Sheet Thickness min. mm |
Rec. Hole SIze +0.08 mm |
Distance Centre Hole to Sheet Edge min. mm |
Hole in attached Parts max. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 1.53 | 5.98 | 5.52 | 7.01 | 3.56 | 1.0 - 1.78 | 6.0 | 4.32 | 3.5 | |||||||||||||||||||||||
| M4 | 1.53 | 7.48 | 7.01 | 8.54 | 4.20 | 1.0 - 1.78 | 7.5 | 5.59 | 4.5 | |||||||||||||||||||||||
| M5 | 1.53 | 7.98 | 7.52 | 9.0 | 4.45 | 1.0 - 1.78 | 8.0 | 6.35 | 5.5 | |||||||||||||||||||||||
