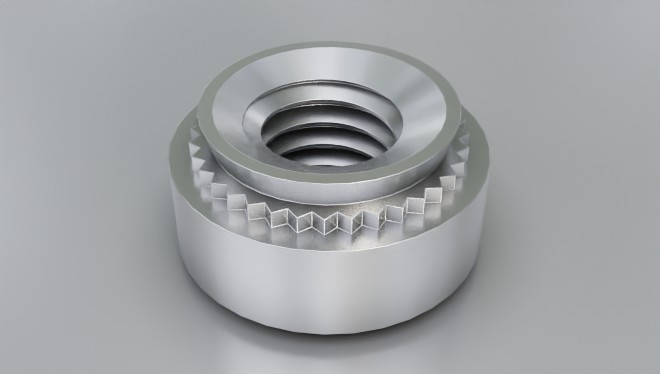

Type: SF-S or SF-CLS or SF-SP4 or SF-SP2 or SF-CLA

SF-S/SF-CLS/SF-SP4/SF-SP2/SF-CLA

Material Code

Steel/zinc = SF-S
Stainless steel = SF-CLS
Grade400 stainless steel = SF-SP4
A286 stainless steel = SF-SP2
Aluminium = SF-CLA

How to order

Type + Thread - Sheet Code
Example:  SF-S-M3-2 or SF-CLS-M4-1 or SF-SP4-M6-2

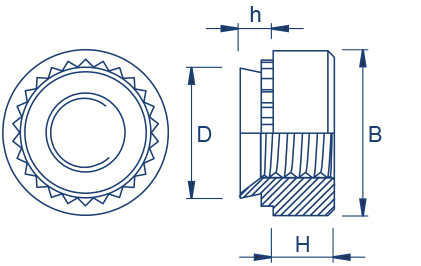

Thread B
± 0.2
mm

D
max.
mm

 h
max.
mm		 H
± 0.25
mm		 Sheet
Code		 Sheet
Thickness
min.
mm		 Rec. Hole Size
+0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
M2 6.35 4.20 0.77 1.5 0 0.8 4.22 4.8
      0.97   1 1.0
      1.38   2 1.4
M2.5 6.35 4.20 0.77 1.5 0 0.8 4.22 4.8
      0.97   1 1.0
      1.38   2 1.4
M3 6.35 4.20 0.77 1.5 0 0.8 4.22 4.8
      0.97   1 1.0
      1.38   2 1.4
3.5M3 7.1 4.73 0.77 1.5 0 0.8 4.75 5.6
      0.97   1 1.0
      1.38   2 1.4
M4 7.95 5.38 0.77 2.0 0 0.8 5.41 6.9
      0.97   1 1.0
      1.38   2 1.4
      2.21   3 2.3
M5 8.75 6.33 0.77 2.0 0 0.8 6.35 7.1
      0.97   1 1.0
      1.28   2 1.4
      2.21   3 2.3
M6 11.10 8.73 0.89 4.08 00 0.92 8.75 8.6
      1.15   0 1.2
      1.38   1 1.4
      2.21   2 2.3
      3.05   3 3.2
M8 12.65 10.47 1.38 5.47 1 1.4 10.5 9.7
      2.21   2 2.3
      3.05   3 3.2
M10 17.35 13.97 2.21 7.48 1 2.3 14.0 13.5
      3.05   2 3.2
M12 20.55 16.95 3.05 8.5 1 3.2 17.0 16.0
